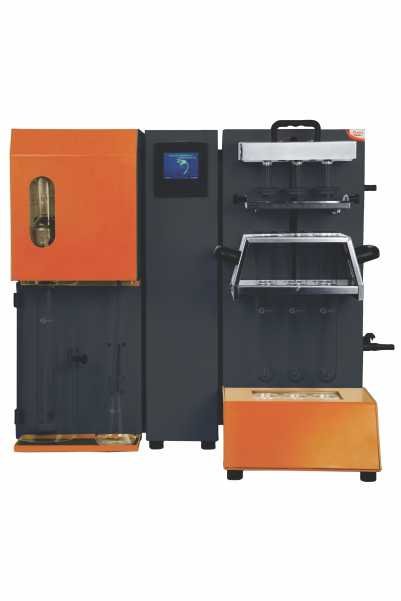

Three in One Combo Automatic 6 Place Digestion With Distillation & Scrubber With Common Touch Screen Control & Display
- The control panel unit along with inbuilt temperature controller, timer, mother board and SMPS is be isolated in separate control tower and housing to protect electronics from wet chemistry & acid/ alkali process area for longevity and safety of all electronic components.
- Water in the scrubber tank is drained and filled automatically every time at the end of digestion thereby draining the water for every consecutive cycle.
- Manual drain of water from the scrubber tank is also provided.
- A separate distilled water line to the steam generator.
- Auto refilling of distilled water to the steam generator is provided by using a proximity sensor.
- Monitoring of boiler water level from outside.
- Users choice to choose independent or combined operation of digestion and distillation.
- Inbuilt safety from Over voltage
Technical Specification:
| Model | : | DN.NA.01 |
| Material of construction | : | MS with powder coated finish |
| Operations | : | Digestion, Distillation and Scrubb |
| Cooling System & Automatic | : | Through water coil condenser in higher models |
| No of samples | : | 6 nos |
| Tube dimension | : | 42 x 300mm |
| Tube capacity | : | 250ml (Borosilicate Glass 3.3) |
| Process controller | : | 4.3” TFT touch screen controller |
| Mode of operation | : | Auto and Manual |
| Digestion Heating block | : | Extruded Aluminium block HE 30 Grade 6063 for 6 samples |
| Digestion Heater | : | Casted Aluminium alloy heater IS 4159 |
| Digestion Heater wattage | : | 1500 W |
| Digestion Temperature controller | : | PID controller |
| Digestion Temperature Range | : | 50 degree to 450 degree |
| Digestion temperature accuracy | : | +/- 1% |
| Digestion temperature sensor | : | Chromal K type thermocouple upto 1200°C |
| Digestion program | : | 5 program and 5 steps |
| Digestion program parameter | : | Temperature and time |
| Digestion block insulation | : | Ceramic wool |
| Digestion acid fumes removal | : | Teflon adaptor fuse to manifold using & outlet connected to the glass suction pump |
| Handle | : | Polyamide |
| Two tier console | : | To place Insert rack and Manifold Rack |
| Digestion tube insert Rack | : | Stainless steel-SS304 with Glossy Finish |
| Digestion Manifold Rack | : | Stainless steel-SS304 with Glossy Finish |
| Digestion Drip Tray | : | Stainless steel-SS304 with Glossy Finish |
| Exhaust fume condensation | : | In water |
| Scrubber tank | : | Stainless Steel 304 |
| Scrubber water leveller | : | Float switch |
| Scrubber tank capacity | : | 10 litre |
| Scrubber suction pump | : | Giant filter pump |
| Distillation expansion vessel | : | Glass vessel with Teflon insert for alkali addition inlets nippons for alkali addition and steam addition |
| Scrubber water re-circulation pump | : | 2 Magnetic pump with flow rate of 18L/min |
| Scrubbing Tubing Hardness | : | Silicone tube 70±5 shore A, Temp. resistance -60°C to +200°C |
| Real time monitoring of process | : | yes |
| No of distillation | : | One at a time |
| Distillation programme | : | 5 program/3 steps |
| Distillation Programme steps | : | Alkali, reaction delay and Process |
| Distillation Dosing pump | : | For alkali addition 24 DC Motor 500 ml/min |
| Distillation steam Generator | : | Stainless steel-SS304 with pressure release valve to back suction of sample |
| Distillation water condenser | : | Glass with 2 bulb and coil condenser |
| Distillation solenoid valves | : | For Steam, Refilling and Vent |
| Distillation Heater | : | Immersion Heater |
| Distillation Heater Wattage | : | 1500 W |
| Distilled water tank | : | PVC |
| Distilled water tank capacity | : | 5 Lit |
| Distillation Reagent tank | : | PVC |
| Distillation Reagent tank capacity | : | 2 lit |
| Electrical requirement | : | 230v/50Hz/16A |
| Unit Dimension | : | 32 x 26 x 41 inches |
| Connectivity to printer | : | Available for higher models |
| Connectivity to USB | : | Available for higher models |
| Real Time Monitoring of Process | : | Yes |
| Nitrogen recovery | : | 99.5% |
| Nitrogen reproductiobility | : | +/-1% |
| RSD | : | <1% |
| LOD | : | 1-200 mg with >_0.1mg of Nitrogen |
| Total Time process | : | 2.5 Hours |
