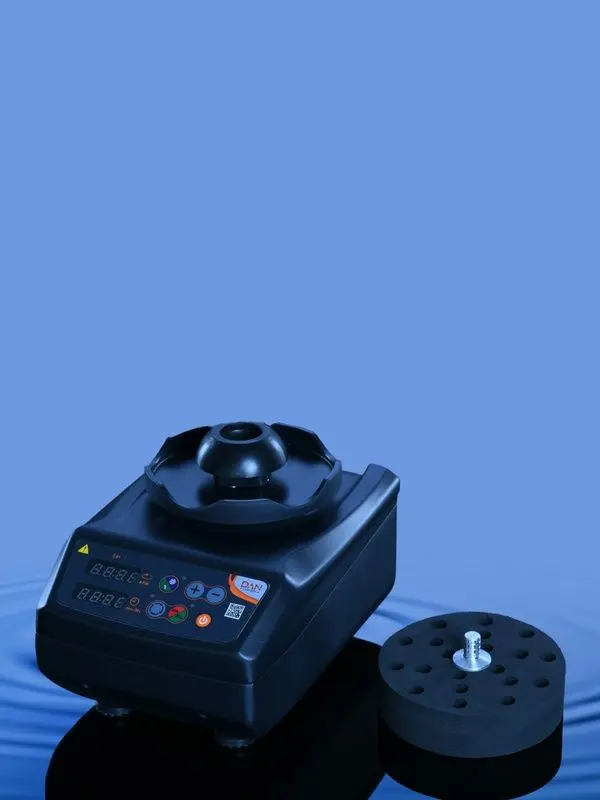

Mini Shaker

Intro

A Mini Shaker is an instrument used to mix liquids in small vessels or tubes with the help of adaptors. This instrument has the possibility to fix adaptors for assisting the use of a microtiter plate, selective tubes in soft adapters which helps in easy shaking movement of the liquid in tubes in the attachments.

Features

  1. Orbital Movement
  2. Vortex movements also possible
  3. LED Display for clear visibility
  4. Compact Design
  5. Speed Stability
  6. Continuous and One Shot Operation
  7. Choice of menus

Features

Compact, universal small shaker suitable for shaking tasks with all small vessels with adapters and microtiter plates
  • Sturdy Aluminum die cast casing
  • PU Coated aluminum Alloy Construction
  • 2 in 1 vortex with shot mode & shaking mode gives result quickly
  • Support thirteen different adaptors
  • Wide range of attachments available
  • Timer & countdown functions make it versale
  • Stable in all speed ranges
  • Continuous or touch/shot operation (with standard attachment)
  • Audible timer by pass mode for uninterrupted non stop use

Uses

The Mini Shaker is generally used in Pharmaceuticals, Chemistry and Biology Laboratories to mix liquids. The Mini shaker is suitable for shaking tasks with all small vessels and microtiter plates.

Two - Way Mixing Modes

DAN Logitech’s Mini Shaker is used for mixing the solutions in two different ways.

  • Normal Mixing (Orbital) - This is done for mixing the solutions with attachments mounted on the shaker. Mixing Speeds are limited to 1500 for safety, however one can choose to override.
  • Vortex Mixing - This function mixes the liquids in a single time with high speed. Within a couple of seconds, the liquids are mixed up. The mixing speed is 3000 RPM.

Why DAN Logitech’s Mini Shaker?

  • It provides a wide range of attachments and adaptors.
  • DAN Logitech’s mini shaker has a timer with countdown function.
  • The Mini Shaker is CE Certified.
  • It is made from a combination of plastic and metal for stability.
  • The shaking blocks are convenient for replacement.

Technical Specifications

Type of movement Orbital
Orbit/Shaking Stroke 3 mm
Permissible orbit weight (incl. attachment) 0.5 kg
Permissible ON time 100%
Speed min (adjustable) 200 rpm
Speed range 200 – 3000 rpm
Speed display LED
Speed deviation 1%
Timer yes
Timer display LED
Time setting min. 1 s
Time setting max. 100 Hrs
Operating mode Timer and Continuous Operation
Touch/shot function yes
Working with microtiter plates yes
Number of microtiter plates 1
Dimension 150x207x111mm (WxDxH)
Permissible ambient temperature 5 – 40 °C
Permissible relative humidity 80%
Protection class according to DIN EN 60529 IP 21
Adaptors Available
Voltage 100 – 240 V
Frequency 50/60 Hz
Power input 10 W
DC Voltage 24 V
Weight 3.8 Kgs
IP Class 21

ADAPTERS AND ATTACHMENTS

SR. No.  CATALOGUE NO.  DESCRIPTION
DNS-A Foam tube holder with 20 holes used for 1.5/0.2 ml tubes having diameter 9.8 mm.
2. DNS-B Foam tube holder with 36 holes used for 0.5 ml tubes having diameter 6.6 mm.
3. DNS-C Foam tube holder with 70 holes used for 0.2 ml tubes having diameter 5 mm.
4. DNS-D  Foam tube holder with 8 holes used for 15 ml tubes having diameter 14 mm.
5. DNS-E Foam tube holder with 4 holes used for 50 ml tubes having diameter 26.2 mm.
6. DNS-F Standard head suitable for tubes and containers with diameter < 30 mm.
7. DNS-G Convex Pad suitable for tubes and containers with diameter < 99 mm.
8. DNS-H 4 Tubes holder platform for 15 ml tubes.
9. DNS-I 2 Tubes holder platform for 50 ml tubes.
10. DNS-J 22 Tubes holder platform for 1.5/2.0 ml tubes.
11. DNS-K Plate holder platform for all standard plates.
12. DNS-M Standard platform to hold foam tube holder.


Also Known as : 3800.EU.01
