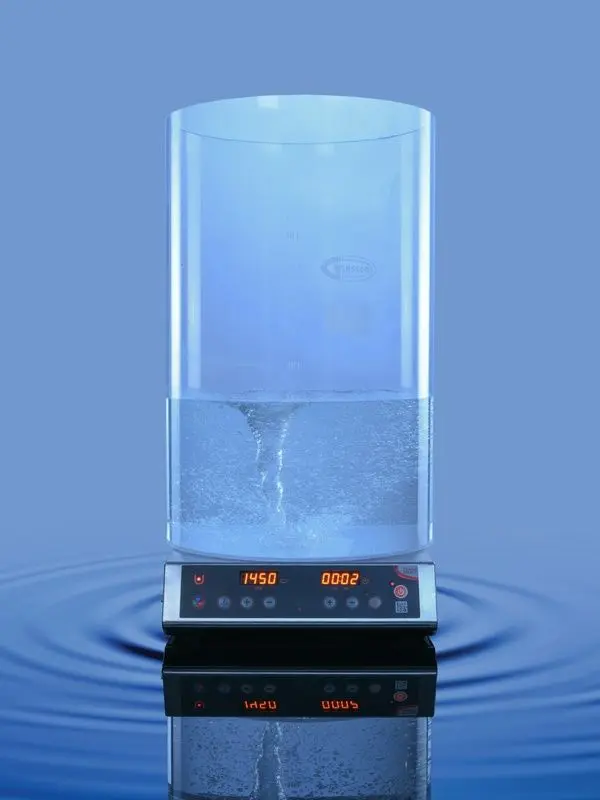

MAGNETIC STIRRER-DIGITAL
₹100,000.00
In stock
- Large display allow viewing from distance
- Powerful magnet stirrer large volume
- Acceleration adjust for volume & viscosity combination
- Auto power ‘ON’ possible
- Detachable wire & wireless remote add value for placing under large vessel
- SS 304 construction
- Large surface to assist large vessels upto 20, 30 40 & 50L
- High magnetic strength
- Electronic variable speed control
- Independent display for RPM & Time
- Choice of 7 modes of rotation
- Power adjust feature
- Optional remote
Technical Specification:
Speed Range | : 100 – 2000 rpm |
Timer Range | : 0:01 to 99:59 (HH:MM) |
Stirring Power Mode | : 50%,75%,100% |
Acceleration Mode | : yes |
Timer bypass | : Yes |
Display type | : Led segment |
Stirring power (max.) | : 50W |
Operating voltage | : 24VDC |
Power supply | : 100-240 VAC / 50-60 Hz / 2A |
Dimensions (WxDxH) | : 370x415x115mm |
Weight Approx. | : 11Kg |
Material Housing | : Stainless steel-304 |
Permitted operation conditions | : 5 to 40 °C (at 80% humidity) |
Protection category | : IP20 |
Model No. | V | Hz | Watts | Cap(ltr.) | Top Plate |
|
|
---|---|---|---|---|---|---|---|
420.DNDG.01 | 230V | 50 | 50 | 20 | SS 304 Grade |
|
|
440.DNDG.01 | 230V | 50 | 50 | 40 | SS 304 Grade |
|
|
450.DNDG.01 | 230V | 50 | 50 | 50 | SS 304 Grade |
|
|
4100.DNDG.01 | 230V | 50 | 50 | 100 | SS 304 Grade |
|
|
4200.DNDG.01 | 230V | 50 | 50 | 200 | SS 304 Grade |
|
