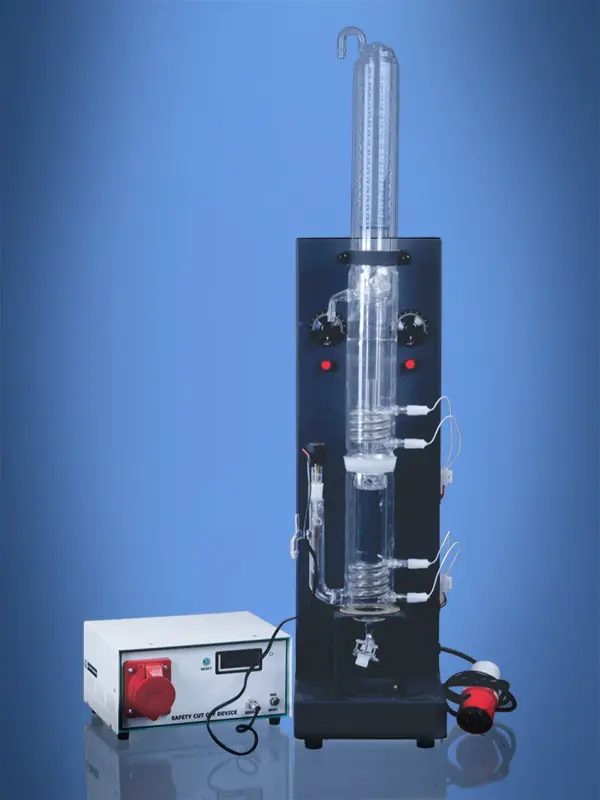

All Quartz, Double Stage, Water Distillation Unit, Vertical Model, including Safety cutoff


In stock

Unit has been designed keeping in view customer requirements and easy serviceability of the equipment.

Unit consists of :

  • Lower boiler with inbuilt heater enclosed in a quar tz boiler with a cup on top.
  • Demountable upper boiler with built in quar tz coil and condensing unit mounted on the boiler with the help of ball and socket joint
  • Double walled condenser ensures separate condensation of vapours coming from the two boilers using a single cooling circuit
  • Unit mounted on a specially designed metal stand and is also provided with automatic safety Control Unit


Double Distillate Quality:

Parameters Values
Specific Conductivity 0.1 us/cm
Biological Activity
(distillate quality)
Pyrogen Free
Organic Matter NIL
Total Solids 0.1 mg/ltr

* We recommend a Quar tz Reservoir For storage of High purity water.
* All Parameters are under standard test conditions


Spare Parts for above:

Item Code Output Capacity ltr./Hr Description Pack Of
GLDD-15AQ-PB 1.5 Quar tz Primary Boiler 1
GLDD-25AQ-PB 2.5 Quartz Primary Boiler 1
GLDD-40AQ-PB 4 Quartz Primary Boiler 1
GLDD-50AQ-PB 5 Quartz Primary Boiler 1
GLDD-15AQ-SC 1.5 Quartz Secondary Boiler 1
GLDD-25AQ-SC 2.5 Quartz Secondary Boiler 1
GLDD-40AQ-SC 4 Quartz Secondary Boiler 1
GLDD-50AQ-SC 5 Quartz Secondary Boiler 1
GLSI-SCU-15AQ 1.5 Safety Cut-off Device 1
GLSI-SCU-25AQ 2.5 Safety Cut-off Device 1
GLSI-SCU-40AQ 4 Safety Cut-off Device 1
GLSI-SCU-50AQ 5 Safety Cut-off Device 1


Item Code Output Capacity Ltr / Hr Pack of
GLDD15AQ 1.51
GLDD25AQ 2.51
