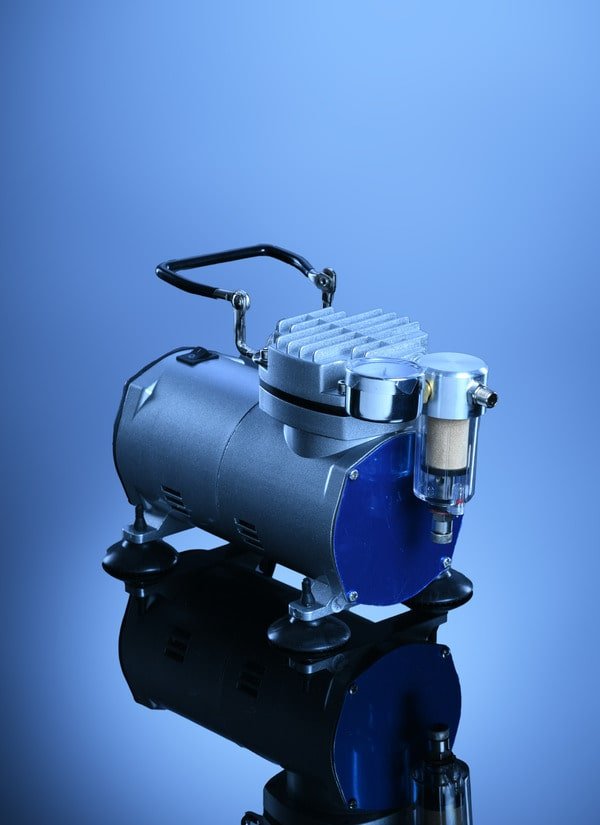

Salient Features:

  • Valves made of SS 316 material Built–in micro suction filter
  • All parts made from special graded Aluminum die cast material for light weight and good strength
  • Totally oil-free construction
  • No lubricant required
  • Diaphragms are made of special 2-ply nylon reinforced neoprene rubber.
  • Noiseless performance
  • Extra large bearings for trouble-free and smooth running.
  • Absolutely portable
  • Practically maintenance –free


Material: Aluminum Die Cast
Vacuum: 22” Hg
Flow: 15 (Ltrs/Min)
Pressure: 25 Psig
Connection: 10 mm Hose
Weight: 2.5 Kg
Motor: 1/20 hp
Dimension: 150x110x140

Item Code:263.202.01, Description:Glass Filter Holder with stainless steel screen 90 mm, Pack of:1
