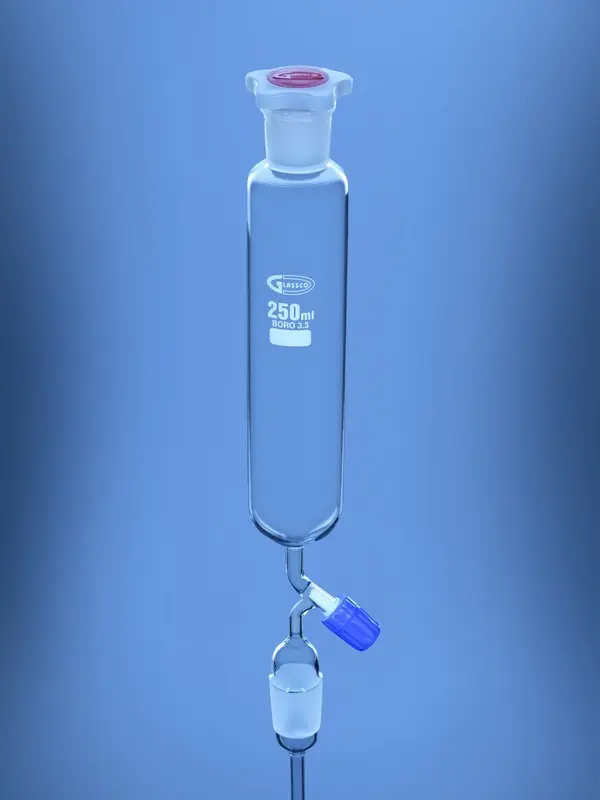

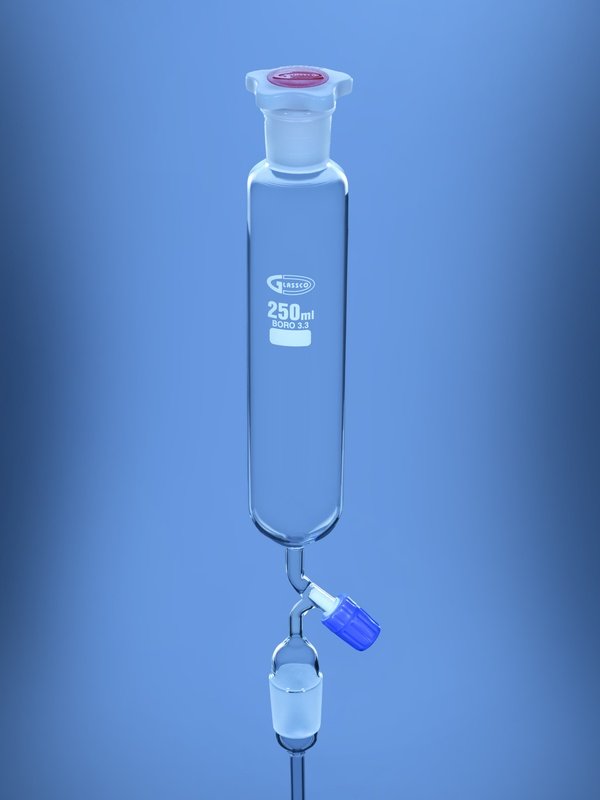

Separating Funnel, Cylindrical, Needle Valve Stopcock, DIN/ISO

10,000.00

In stock

Complies with ISO 4800 Standards








  • Made from DIN ISO 3585, BORO 3.3 GLASS
  • Complies with DIN 4800 Standards
  • Available with PE Stopper
  • With socket and cone

Boro 3.3 or Borosilicate 3.3 is a type of glass having very low coefficient of thermal expansionwhite ceramic colours used for white printing on glassware's. white ceramic colours are cured at high temperature & are durable, permanent, excellent weatherability, surface hardness and chemical resistance.Borosilicate glass 3.3 is highly resistant to water effects, neutral and acid solutions, heavy acids and their mixtures, to chlorine, bromine, iodine and organic compounds. Even in long-term effects and at temperatures above 100 °C, this glass outstrips with its chemical durability most metals and other raw materials. Class of Resistance to Acid Effects (ISO 1776 a DIN 12116) is Class S1.

Needle valve stopcock made form PTFE regulate the flow of liquids or low pressure gases & can be adjusted from a 0 to 6mm bore. this design permits fine flow adjustment, doesn't required Lubrication with fast assembly because there are no O-rings, washers or nuts.

PE StopperWith Cone and socket





Item Code Capacity (ml) N/S Bore (mm) Stopcock Type Pack of
Enquiry
166.202.025014/232.5Needle Valve1
166.202.02A5029/322.5Needle Valve1
166.202.0310014/232.5Needle Valve1
166.202.03A10029/322.5Needle Valve1
166.202.05A25029/324Needle Valve1
166.202.06A50029/324Needle Valve1
166.202.07A100029/326Needle Valve1
