Incubator Shaker

A combination of mixing and incubating the liquids at the same time is termed as an incubator shaker. It is one of the four shakers which is ideal for heating, cooling, shaking, and homogenizing liquid matter with uniform temperature distribution. Cell Cultures are generally prepared in incubator shakers, also known as Thermal Shaker

The incubator shaker is a box-like container that heats, cools, shakes, and mixes the vessel’s liquids. The largest incubator can hold a capacity of 2 liters to 115 liters

Evolution of Incubator Shaker

The first incubators were invented in the early 1800s which were termed “air-jacketed” incubators. Later, during the year 1960, commercial incubators with CO2 were developed. Furthermore, in the year 2001, the combination of incubator and mixing was enhanced by incubator shakers.

Common Features

  • Consistent
  • Uniform Mixing
  • Accuracy
  • Safe and Durable
  • Digital Set-Up

Used For

  • Preparing Cell Cultures
  • Solubility Studies
  • Bacterial Suspensions
  • Extraction Process
  • General Mixing
  • Hybridizations
  • Staining and Destaining
  • Plasmid Purification

Common Challenges Faced by Users

  • Long process to incubate first and then shake.
  • Varied Temperature Distribution
  • Noisy functioning

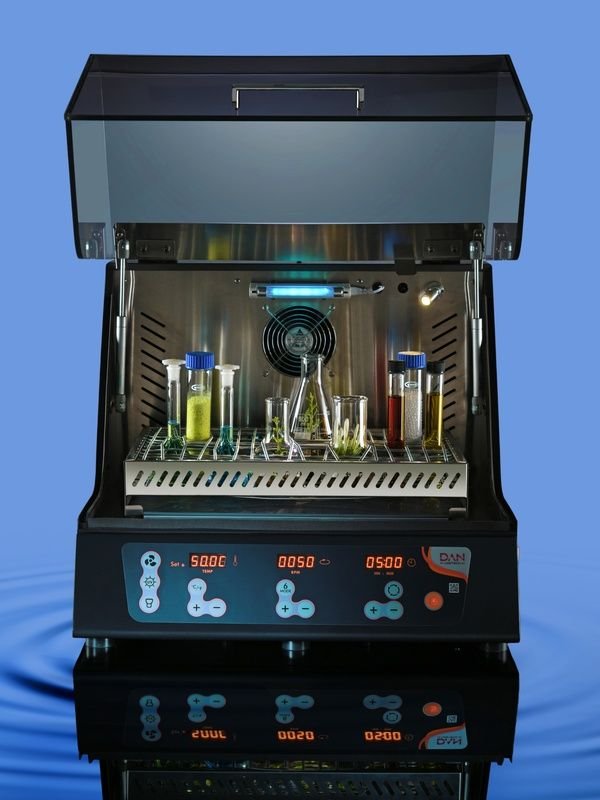

The benchtop incubator shaker at DAN Logitech is a two-in-one instrument that simultaneously stirs and incubates with the required ambient temperature. It is a thermostatically controlled instrument with a compact design which is user friendly and works on a microprocessor

Features

  • Brushless DC Motor
  • CE Certified
  • UL Listed
  • Metal Shaker Body Material
  • With clear door to allow easy viewing of flasks

Technical Specifications

  • Speed Range - 50 RPM to 300 RPM
  • Fan Speed - 1200 RPM to 3200 RPM
  • Horizontal Orbital - 20 mm
  • Capacity - 70 liters
  • Power - 100 V to 230 V, 600 W
  • Time - 01min. To 99:59 hrs
  • Permissible Ambient Temperature - 4° C to 45° C
  • Temperature Control Accuracy - 0° C to 0.3° C

How DAN Logitech’s Incubator Shaker is a solution?

  • Silent and Stable Operation
  • Audible Alarm System for safety and easy operation
  • Low Power Consumption
  • Independent 7 segment LED Display.
  • Compatible for use with various capacity flasks and containers

Sr. No.

Technical Data DAN Logitech Instruments Pvt. Ltd. Germany USA

1

Inner Chamber Volume

70 liters 50 liters 50 liters
2

Weight

95 kg 37 kg

75 kg

3

Time 01:00 min to 99:59 hours 01:00 min to 999:59 hours

01:00 min to 99:59 hours

4

Audible Alarm

YES NO NO

5

Frequency 50/60 Hz 50/60 Hz

50/60 Hz

6

Orbital Diameter

20 mm 20 mm

19 mm

Market Presence

DAN Logitech Private Limited, earlier known as Glassco Laboratory Instruments Private Limited, has a presence in benchtop instruments for over 11 years. Since 2009, it has achieved utility and design patents with UL/CE certificates for each device.

Features:

  • Compact design
  • Available with Flat platform
  • BLDC motor driven
  • Microprocessor controlled
  • User-Friendly
  • Application in molecular biology, immunology, chemistry lab
  • Low power consumption
  • Maximum stirring speed upto 300RPM
  • Digital set up of RPM and time with independent LED display
  • Audible alarm at time cycle end for safety and ease of unsupervised operation
  • Silent and stable operation
  • Compatible for use with various capacity conical flasks and different sample containers.

Technical Specification:

Shaker Body Material: Metal
Speed Range: 50-300 rpm
Fan Speed: 1200-3200 rpm
Orbit (Horizontal): 20mm
Dimensions of Body: 609x770x515 (WxDxH)
Platform Size: 480x315x80 (WxDxH)
Permissible ambient Temp.: 4-60°C (Approx.)
Temp. Control Range: (RT) + 5-60° C
Power: AC 100 – 230V, 600W
Timer: 1min – 99Hrs 59Min
Temp. Control Accuracy: ≤ 0 ± 0.3°C
