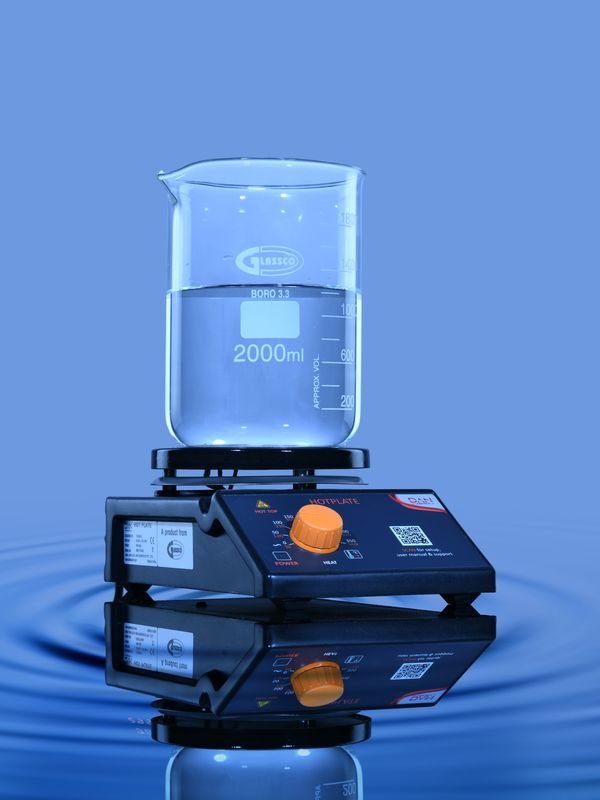

Hotplate – Analog

  • Aluminium Moulded Construction
  • Easy Temperature control
  • Hot top indicator for temperatures above 50°C
  • Large top plate to assist beakers up to 2000 ml
  • Heat reach Indicator, To ensure you the correct temperature of the plate surface
  • Temperature Indicator

Technical Specification:

Heating Mantle Material : Stainless Steel 304 Grade/ Ceramic Coated
Dimension of the heating plate : 150 Ø
Temperature Range : Ambient to 350°C approx
Dimensions of the hot plate body : 273x160x102mm
Weight of body : 2.5 kgs
Permissible Ambient Temperature : 5- 40 °C
Permissible relative moisture : 80%
IP Class : 22
Also Known as : 730.AG.01



Item Code:730.DNAG.01, V:230, Hz:50, W:30, Top Plate: Stainless Steel top with Ceramic Coating
