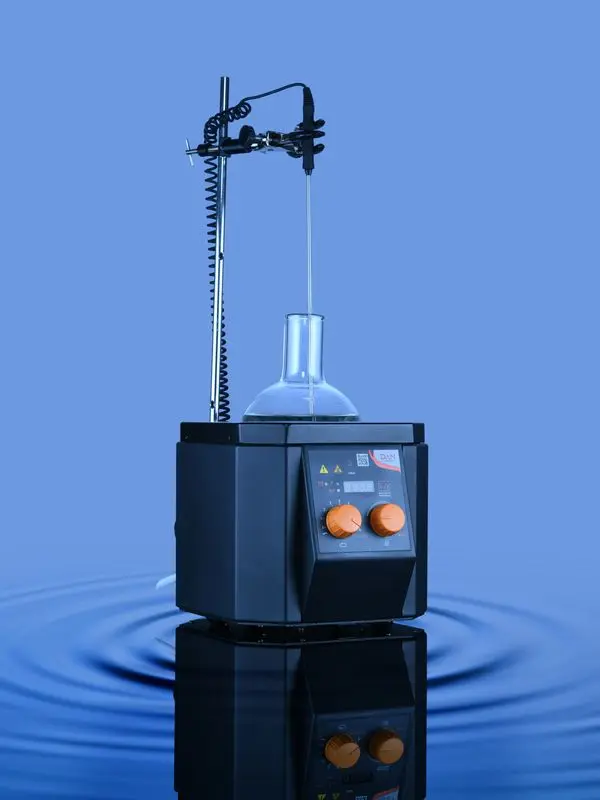

Heating Mantle with Stirrer – Digital (BlackDiamond™)

100,000.00

In stock

  • Designed for advanced Laboratory usage
  • Control the temperature of subject in flask using probe
  • Temperature control with digital display
  • Celsius/Fahrenheit selection
  • Mantle/Probe selection
  • SS & Aluminium Construction
  • For Round Bottomed Flasks as per DIN – 12347
  • Glass fibre yarn knitted mantle provides uniform heating to flasks
  • Innovative spill collect system enables collection of spillage in cares of breakage of flasks
  • Fewer parts give longer life
  • Easy to use and maintains
  • Provision to attach accessories
  • Electronic stir speed control

Technical Specification:

Heating Mantle Body : Metallic SS & Aluminium
Heating Mantle Material : Glass Fibre Yarn
Mantle Capacity : To hold standard Round Bottom Flasks upto 5000ml
Heating Control : Microprocessor based PID
Stir Control : Microprocessor based
Temperature Range : Approx. 400?C
Control Accuracy : 10%
Weight : 2.5Kg
Variable Speed Range : ~800 RPM
Permissible Ambient Temperature : 5-40? C
Permissible relative moisture : 80%
IP Class : 10

Models Available:

Model No. Cap(ml) Watts Dimension
1221.DNEU.01 100 220 167x240x182
1221.DNEU.02 250 220 167x240x182
1221.DNEU.03 500 270 217x287x203
1221.DNEU.04 1000 370 217x287x203
1221.DNEU.05 2000 520 309x390x262
1221.DNEU.06 3000 520 309x390x262
1221.DNEU.08 5000 670 309x390x262
Model No. Capacity (mm) W Dimension
Enquiry
1221.DNEU.01100ml220 167x240x182
1221.DNEU.02250ml220 167x240x182
1221.DNEU.03500ml270 217x287x203
1221.DNEU.041000ml370 217x287x203
1221.DNEU.052000ml520 309x390x262
1221.DNEU.063000ml520 309x390x262
1221.DNEU.085000ml670 309x390x262
