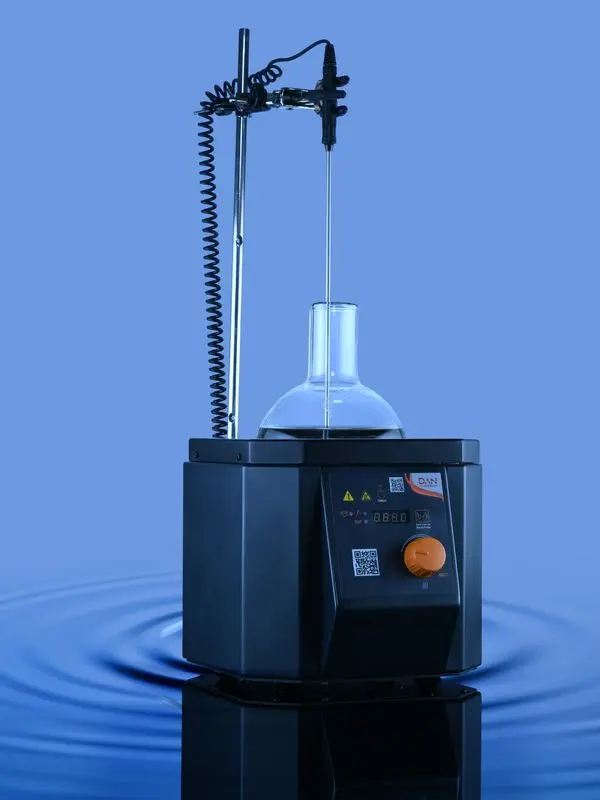

Heating Mantle – Digital (BlackDiamond™)
₹100,000.00
In stock
- Designed for advanced Laboratory usage
- Control the temperature of subject in flask using probe
- Temperature control with digital display
- Celsius/Fahrenheit selection
- Mantle/Probe selection
- SS & Aluminium Construction
- For Round Bottomed Flasks as per DIN – 12347
- Glass fibre yarn knitted mantle provides uniform heating to flasks
- Innovative spill collect system enables collection of spillage in cares of breakage of flasks
- Fewer parts give longer life
- Easy to use and maintains
- Provision to attach accessories
Technical Specification
| Heating Mantle Body | : Metallic, SS & Aluminium construction |
| Heating Mantle Material | : Glass Fibre Yarn |
| Mantle Capacity | : To hold standard Round Bottom Flasks upto 5000ml |
| Temperature Range | : Approx. 400°C |
| Control Accuracy | : 10% |
| Heating Control | : Microprocessor based PID |
| Dimension |
: 168x240x182 (WxDxH) |
| Permissible Ambient Temperature | : 5-40° C |
| Permissible relative moisture | : 80% |
| IP Class | : 10 |
| Model No. | Mantle Capacity (mm) | W | Dimension |
|
|
|---|---|---|---|---|---|
| 1222.DNEU.01 | 100ml | 150 | 167x240x182 |
|
|
| 1222.DNEU.02 | 250ml | 150 | 167x240x182 |
|
|
| 1222.DNEU.03 | 500ml | 150 | 217x287x203 |
|
|
| 1222.DNEU.04 | 1000ml | 200 | 217x287x203 |
|
|
| 1222.DNEU.05 | 2000ml | 300 | 309x390x262 |
|
|
| 1222.DNEU.06 | 3000ml | 450 | 309x390x262 |
|
|
| 1222.DNEU.08 | 4000ml | 450 | 309x390x262 |
|
|
| 1222.DNEU.09 | 5000ml | 450 | 309x390x262 |
|
|
| 1222.DNEU.10 | 6000ml | 600 | 309x390x262 |
|
|
| 1222.DNEU.11 | 10000ml | 600 | 309x390x262 |
|
|
| 1222.DNEU.12 | 20000ml | 1200 | 309x390x262 |
|
