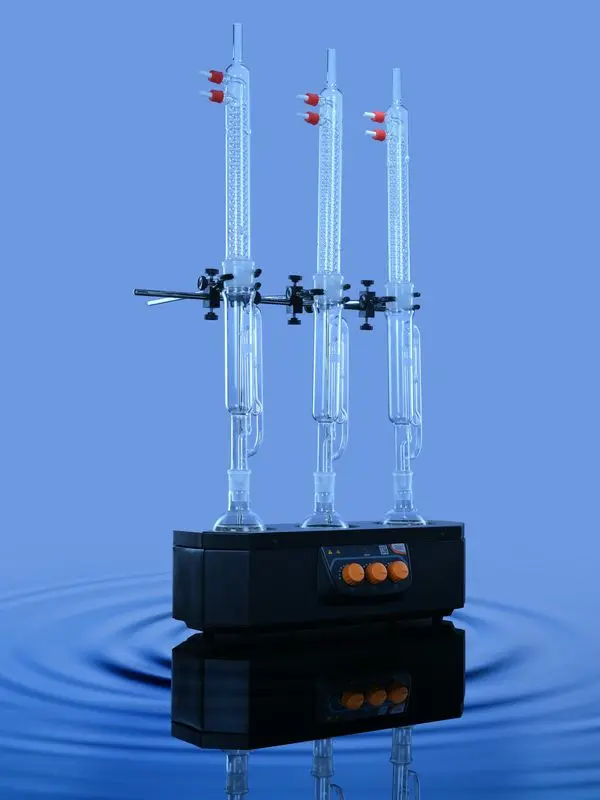

Heating Mantle Combined Unit

100,000.00

In stock

HEATING MANTLE COMBINED UNIT WITH STIRRER 3 POSITION & 6 POSITION

  • Heating Mantle Combined unit made of M. steel
  • Variable knob for heat power control with on/off
  • Mantle knitted with glass fibre yarn
  • Provides uniform heating to flasks
  • For Round Bottomed Flasks as per DIN – 12347
  • Easy maintenance
  • Single position also available with Metallic Stand 1100.DNEU




Included Accessory:

Cat. No. Accessories
2000.200.01 Vertical Rod stainless steel length 542mm, ∅ 9.8mm
2000.200.02 Horizontal Rod stainless steel length 972mm, ∅ 9.8mm
2000.200.03 8/5 Boss Head
2000.200.04 6/3 clamp




Single Soxhlet Extraction Unit

Extraction unit metal stand with heating mantle

Model No. (230V, 50Hz) Model No. (115V, 60Hz) Capacity  (ml) Watts No. of position of regulator
1100.DNEU.02 1100.DNUS.02 150 150 1/1
1100.DNEU.03 1100.DNUS.03 150 150 1/1
1100.DNEU.04 1100.DNUS.04 200 200 1/1






Technical Specification:

Heating Mantle Body : Made of Mild Steel
Heating mantle material : Glass fibre yarn
Mantle Capacity : To hold Standard round bottom flasks upto 500ml
Valuable stirring speed  : 750 RPM
Temperature Range : Approx. 400°C
Heating Control : Electronic power regulator
Stir Control : Electric regulator
Dimension : 495x246x200
Permissible relative moisture : 80%
Permissible Ambient Temperature : 5-40°C
IP Class : 10






Temp Mantle Capacity Places Heating Mantle Material
400° C 100-500ml 3 & 6 Glass fibre yarn
Model No. Mantle Capacity (ml) W Fuse Amp. No. of Position of regulator
Enquiry
2600.DNEU.01100 ml4501 3/3
2600.DNEU.02250ml4505 3/3
2600.DNEU.03500ml6005 3/3
2600.DNEU.04100ml9001 6/6
2600.DNEU.05250ml90010 6/6
2600.DNEU.06500ml120010 6/6
2000.DNEU.01Discontinued
2000.DNEU.02Discontinued
2000.DNEU.03Discontinued
2000.DNEU.04Discontinued
2000.DNEU.05Discontinued
2000.DNEU.06Discontinued
