GLASSCO BOTTLE TOP DISPENSER With Dual Inlet Technology

10,000.00

  • Fully autoclavable at 121°C , 15 psi for 10-15 mins.
  • “CE” mark awarded.
  • Refill the bottle & rinse the instrument WITHOUT DISMOUNTING from bottle.
  • Patented technology that combines unique functionality, user-friendliness & performance.
  • First ever Dispenser offering Dilution , Rinsing , Dual Liquid Handling & Re-circulation in a single unit.
  • Adjustable delivery nozzle to facilitate dispensing ease in all demanding laboratory conditions.
  • 180° Rotation for easy & effortless volume setting.
  • Specially designed adapter allows 360° rotation, providing full flexibility in working.
  • Specially designed, springless, PTFE valve manifold ensures high chemical compatibility and jamming free valve functioning.
  • PTFE Piston with ETP O-Ring ensures very high chemical compatibility & wiper like smooth, effortless piston movement.

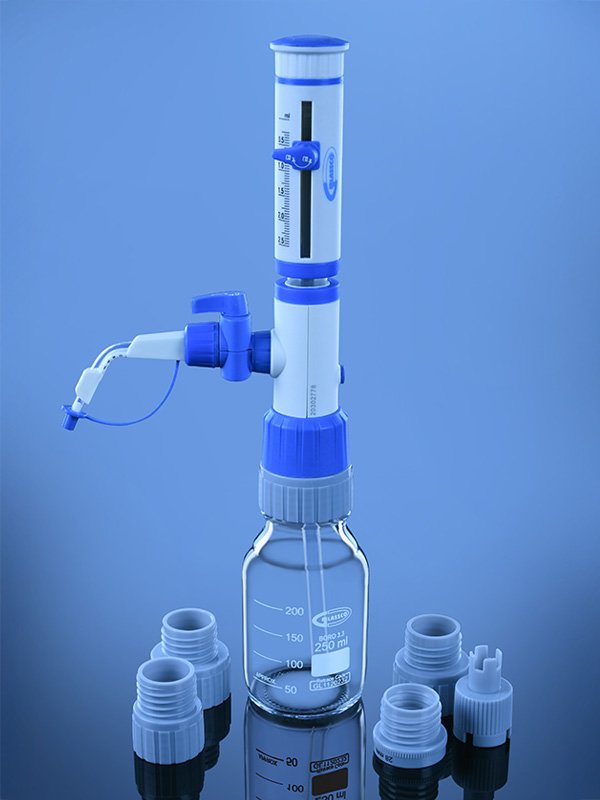

  • Adaptors to fit most of the laboratory reagent bot tles are provided in the following sizes : 28,30,32,36,40 & 45 mm.
  • Calibration as per ISO 8655 standards.



Specifications & Ordering Information

ISO 8655 Specifications Glassco Specifications
Accuracy CV Accuracy CV
Model No. Vol. Range Increment ±% ±ml ±% ±ml ±% ±ml ±% ±ml Pcs/Pack
500.450.01 0.25-2.5ml 0.05ml 0.6 0.015 0.2 0.005 0.6 0.015 0.2 0.005 1
500.450.02 0.5-5ml 0.1ml 0.6 0.030 0.2 0.010 0.5 0.025 0.1 0.005 1
500.450.03 1-10ml 0.2ml 0.6 0.060 0.2 0.020 0.5 0.050 0.1 0.010 1
500.450.04 2.5-30ml 0.5ml 0.6 0.180 0.2 0.060 0.5 0.150 0.1 0.030 1
500.450.05 5-60ml 1.0ml 0.6 0.360 0.2 0.120 0.5 0.300 0.1 0.060 1
500.450.06 10-100ml 2.0ml 0.6 0.600 0.2 0.200 0.5 0.500 0.1 0.100 1
Model No. Vol. Range Increment Pcs/Pack
Enquiry
500.450.010.25 to 2.5ml0.05ml1
500.450.020.5 to 5ml0.1ml1
500.450.031 to 10ml0.2ml1
500.450.042.5 to 30ml0.5ml1
500.450.055 to 60ml1.0ml1
500.450.0610 to 100ml2.0ml1
