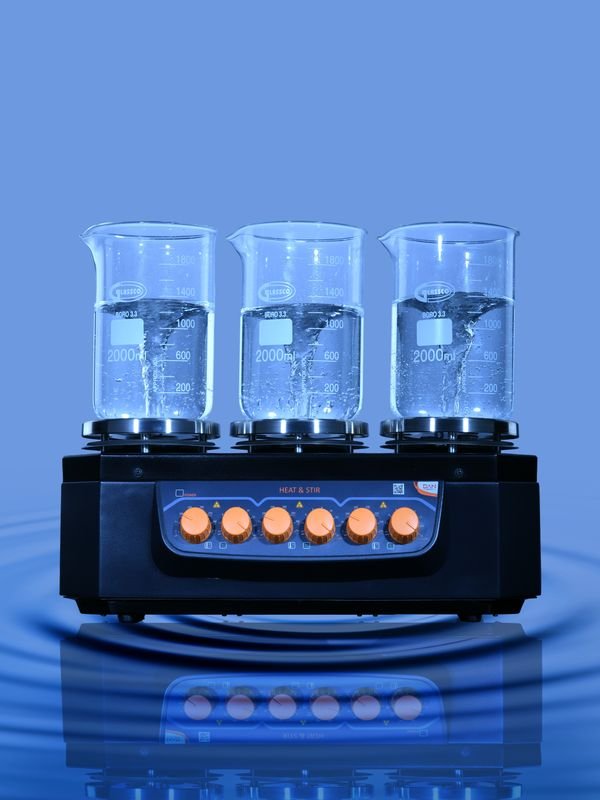

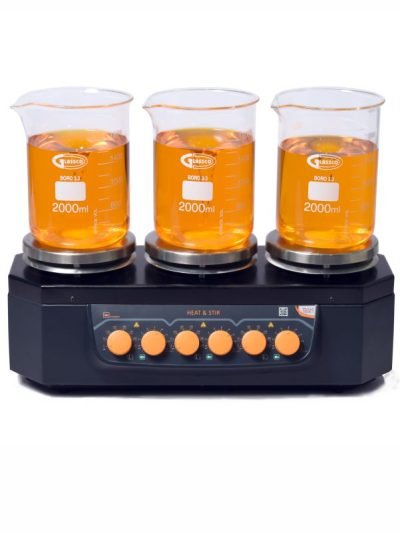

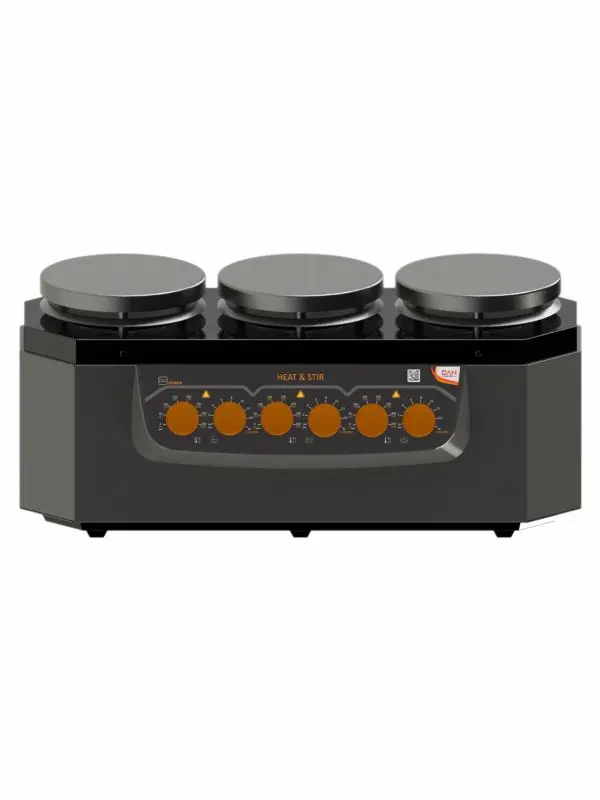

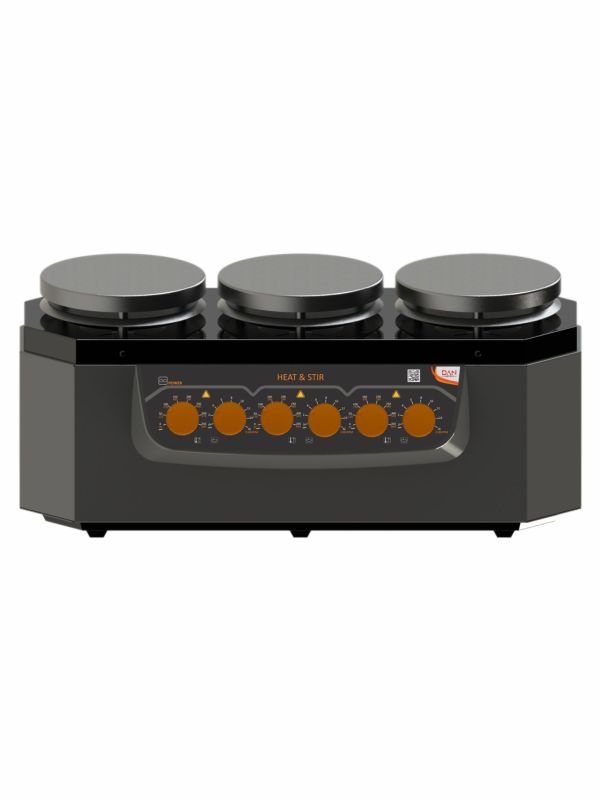

Magnetic Stirrer with Hotplate – Digital :

  • Three independently controlled stirring/heating positions.
  • Powerful magnets for strong magnetic coupling
  • Easy temperature & Stir controls.
  • Installed with Safety PT sensor for fail safe operation.
  • LED hot top indicator for temperatures above 50°C for each station.
  • Electronic variable speed control with Knob for display
  • Knob for regulating variable temperature
  • Heat reach Indicator, To ensure you correct temperature of plate surface.
  • Stirring Indicator
  • LED error code displays & safety for heat & Stir function inbuilt trouble shoot

Technical Specification:

Heang Mantle Material : Stainless Steel Ceramic Coated
Dimension of heang plate : Ø 150mm
Volume cap.
: 20 L each station
Speed Range : 1600 RPM
Stirring position : 3
Maximum stirring range : Can use upto 80mm bar Lower speed
Maximum plate temperature
: 350°C
Overall dimensions (w x d x h), mm : 505 x 246 x 195 (LxWxH)
Plate dimensions, mm : 504 x 175 x 30 (LxWxH)
Net weight, kg
: 7.0 kg (Approx.)
Permissible ambient temperature
: 5 – 40°C
Permissible relative moisture
: 80%
IP Class
: 21

Heat RPM HEAT/STIR CELSIUS TO Temperature
1350W 0-1600 RPM SELECTION FAHRENHEIT Upto 350 °C

Upgraded model of 713.DNAG.01

Also Known as : 713.DNAG.01,713.AG.01, 713.AG.02, 716.AG.01, 716.AG.02
